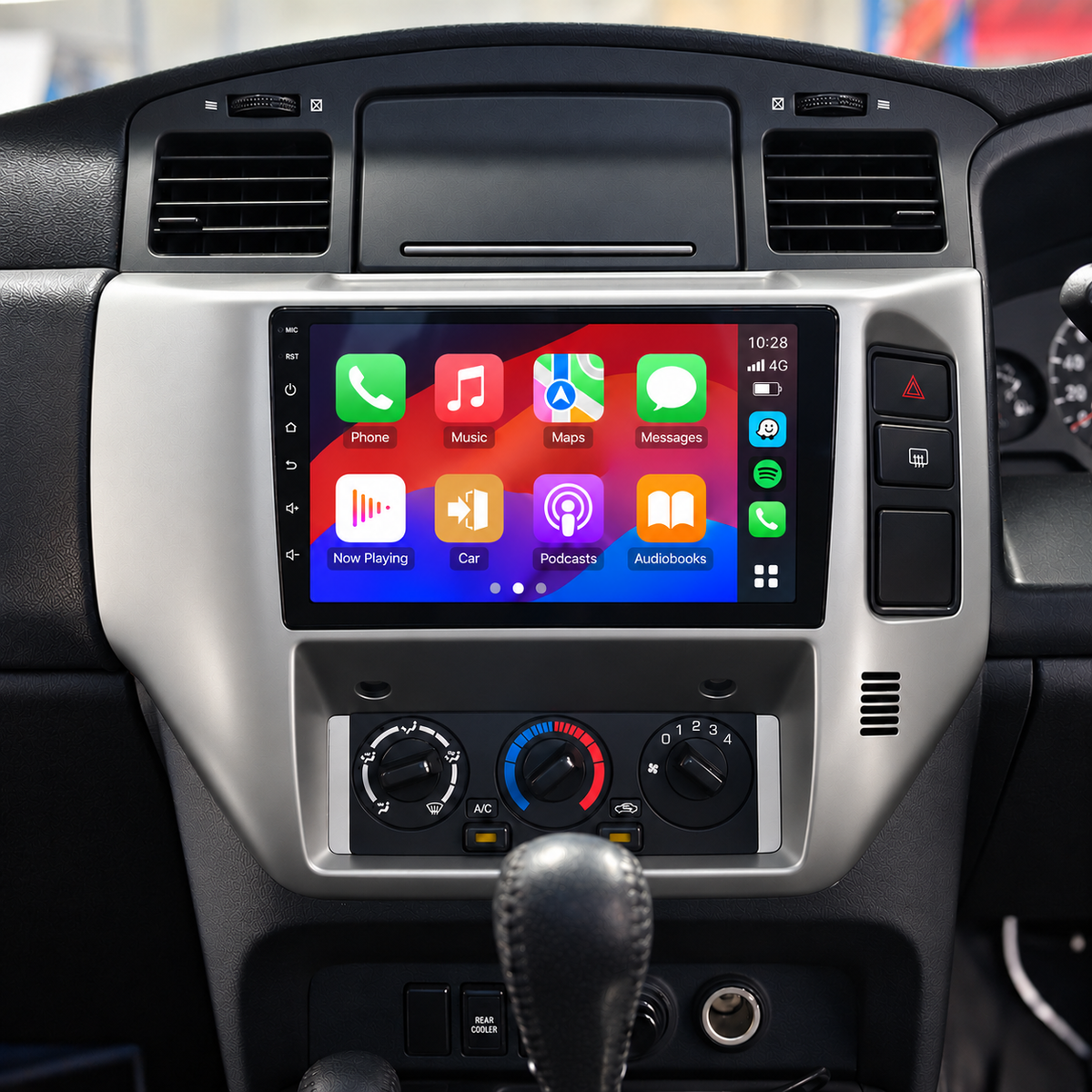

9" Plug-and-Play Head Unit for Nissan Patrol GU (2004–2016)
Fits Patrol GU Series 4 to 8 · 2004 to 2016, wagon and cab chassis
Got a factory camera? Keeping it needs a retention harness we don’t supply. Our camera is the simpler path.
Not sure it fits? Message us a photo of your dash and we’ll confirm before you pay.
For Patrol GU Series 4 to 8, 2004 to 2016
The screen your Patrol should have come with.
Built to outlast everything. Except the radio.
- Hands-free calls
- Bluetooth
- Spotify
- Hema and Newtracs
Four questions, answered
1. Does it fit?
Yes. DX, ST, ST-L and Ti, 2004 to 2016.
- Wagon
- Cab chassis
- Wagon and cab chassis each get their own fascia: just note your body style when you order
- Series 1 to 3 (1997 to 2004)? Get that unit
- Buying it for someone? Send us a dash photo and we’ll confirm the fit
2. Can I fit it myself?
Yes. About an hour, and nothing gets cut.
- Loom and fascia made for your Patrol GU
- First time? Allow two hours
- Adding our camera? Allow two more for the reverse-light wiring
3. What about my factory gear?
It all plugs straight back in.
- Speakers, antenna, hazard and rear demister switches stay
- Steering wheel buttons too, where fitted
- Factory camera stays too (some Ti and special editions): note it when you order and we’ll sort the retention lead
- Two new USB ports replace the old socket
- Amp and sub outputs ready if you upgrade later
4. Which edition?
Essentials for daily driving. Elite for touring.
| EssentialsMost popular | Elite | |
|---|---|---|
| Internet for apps | Phone hotspot | Hotspot or own 4G SIM |
| Memory | 3GB | 6GB |
| Storage | 32GB | 128GB |
- Same screen, CarPlay, GPS and fit on both
- No SIM needed for CarPlay; it runs off your phone
- Elite’s SIM is optional, not included, and needs 4G coverage
In the box
- 9-inch screen
- Fascia matched to your dash
- Plug-in loom
- GPS antenna
- External mic
- 2 USB leads
- Camera lead
Elite adds the 4G antenna and SIM tray.
Add the reverse camera and engine reader
- 1080P camera comes on in reverse
- Engine reader shows supported live data and fault codes
Most orders include it.
Fit it in about an hour
- 1Factory radio outDisconnect the battery first (airbags). Undo the two screws under the radio surround and lift it away from the bottom. Unplug the hazard and demister switches, undo the four radio screws
- 2Plug the loom inEvery factory plug has a match on the loom
- 3Move your switchesHazard and rear demister switches go into the new fascia
- 4Test, then fitCheck sound, phone and GPS before you clip it in
You’ll need: trim tools, Phillips screwdriver, 10mm socket, tape and cable ties.
- Full install guide
- Stuck mid-job? Message us a photo and we’ll talk you through it
- Rather not? An auto electrician or car audio shop can fit it. Send them the guide
Why buy from us?
- Loom and fascia made for your Patrol GU
- In stock in NSW, ships the same business day
- 12-month warranty, plus your consumer law rights
- An Australian business that answers when you message
- 5,500+ customers, 4.9 store rating
Questions
Delivery?
Free AusPost shipping from NSW. Recent orders to NSW and QLD have taken 3 to 6 business days; allow a little longer elsewhere and longest for WA and the NT.
Will it drain my battery?
It goes to sleep when the key is off. If the vehicle sits for weeks, set the shortest sleep time in settings and unplug the engine reader.
Will it throw dash warning lights?
The loom includes a box that talks to your vehicle’s wiring (the CAN interface), so warning lights aren’t expected. If one shows after fitting, message us a photo and we’ll sort it.
Maps with no signal?
The GPS works without phone signal. Download your maps before you go: Google Maps offline areas are free, and Hema (paid) is built for the bush.
Antenna, USB and radio?
Your factory antenna connects to the loom, with an adapter for the Nissan twin plug where needed. Two new USB leads replace the factory socket and run wherever suits you. FM is built in. There’s no AM or DAB+ tuner, but those stations stream through free apps like ABC listen, using data.
Screen and controls?
The IPS screen reads clearly from any angle; polarised sunglasses can make it look darker, which is normal for car screens. No knob. Volume is on the screen, and on your steering wheel buttons where fitted. It starts up quickly and reconnects your phone on its own.
Engine reader on an older vehicle?
Older diesels, especially before about 2007, may show little or nothing on it. The camera works on any year.
Specifications?
Ti with the factory sat-nav screen?
That model has a different centre dash. Send us a photo and we’ll confirm the right setup for it.
Returns?
Faulty: covered by the warranty and we pay return freight. Change of mind: unused and unopened, within 30 days of delivery, for 30-Day Store Credit. Full policy.
12-month warranty · 30-Day Store Credit · Free shipping from NSW
