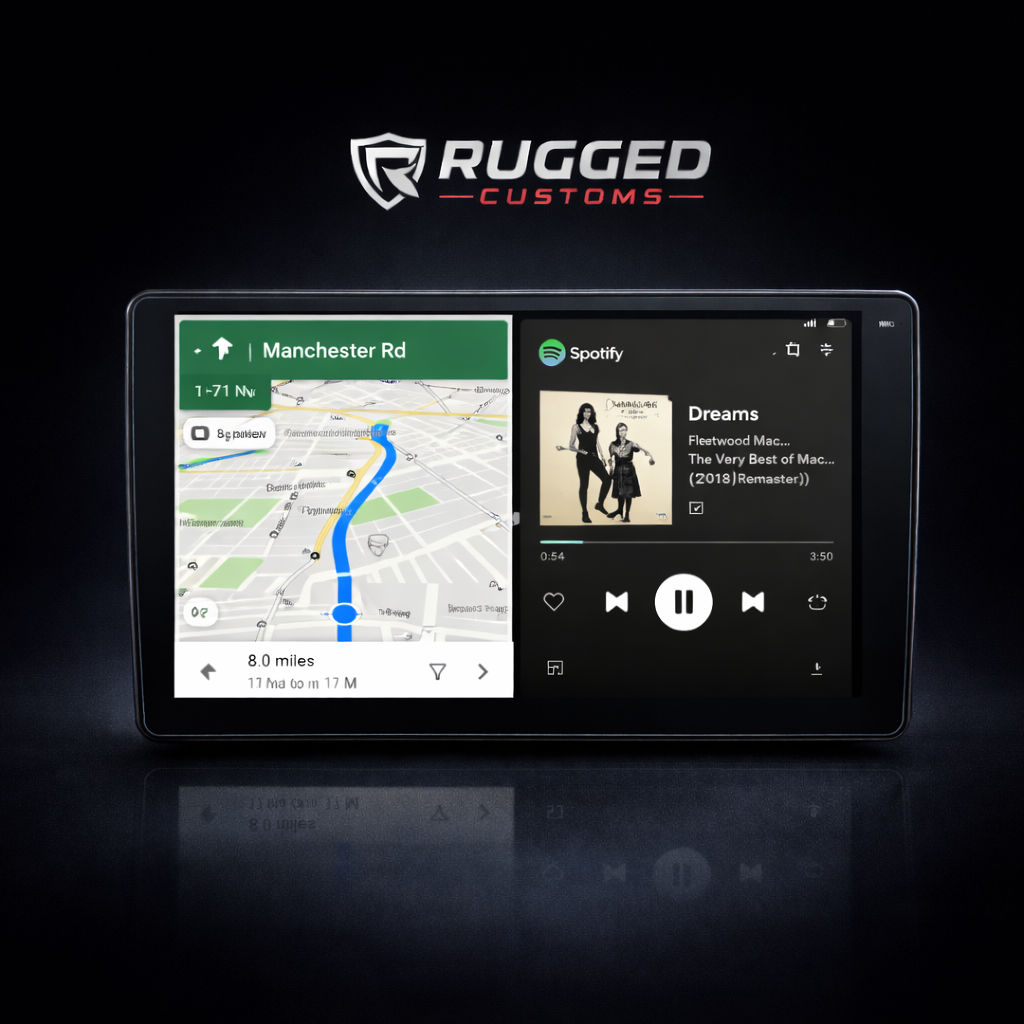

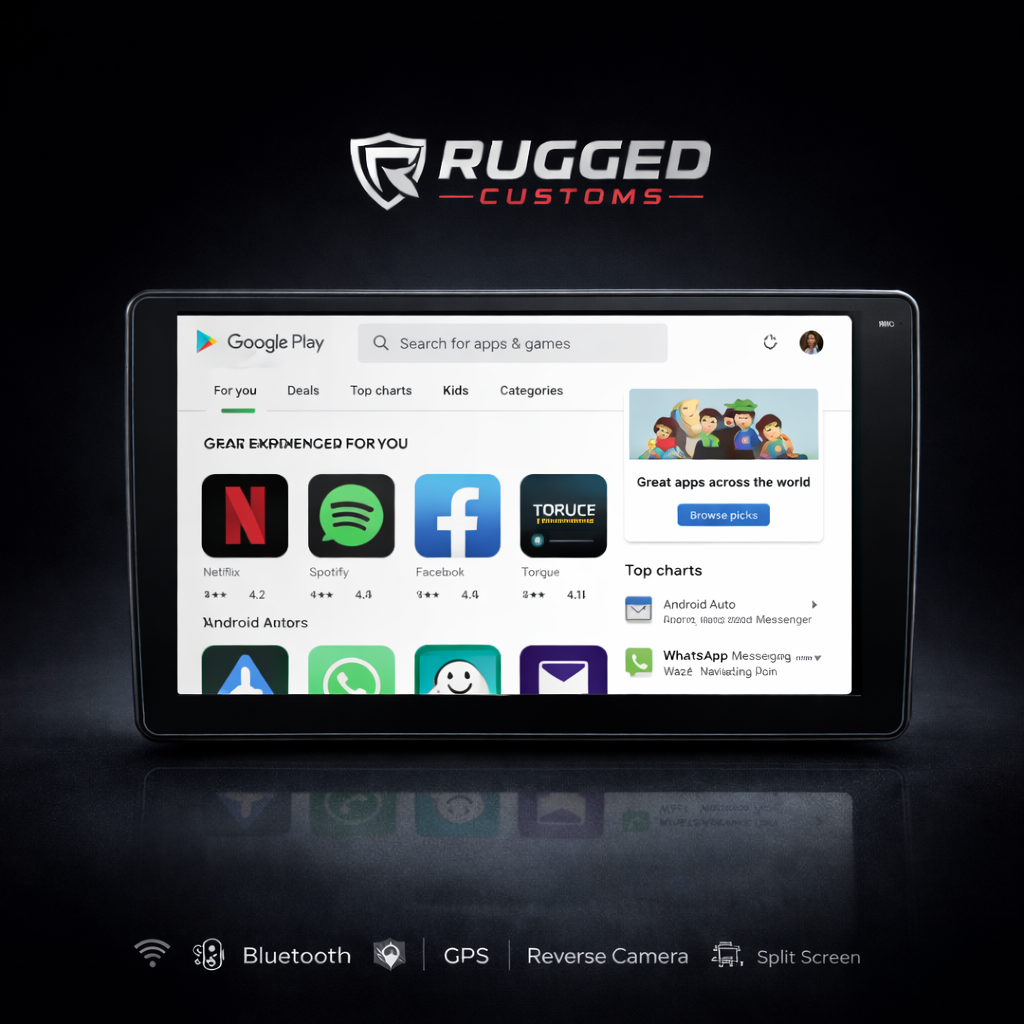

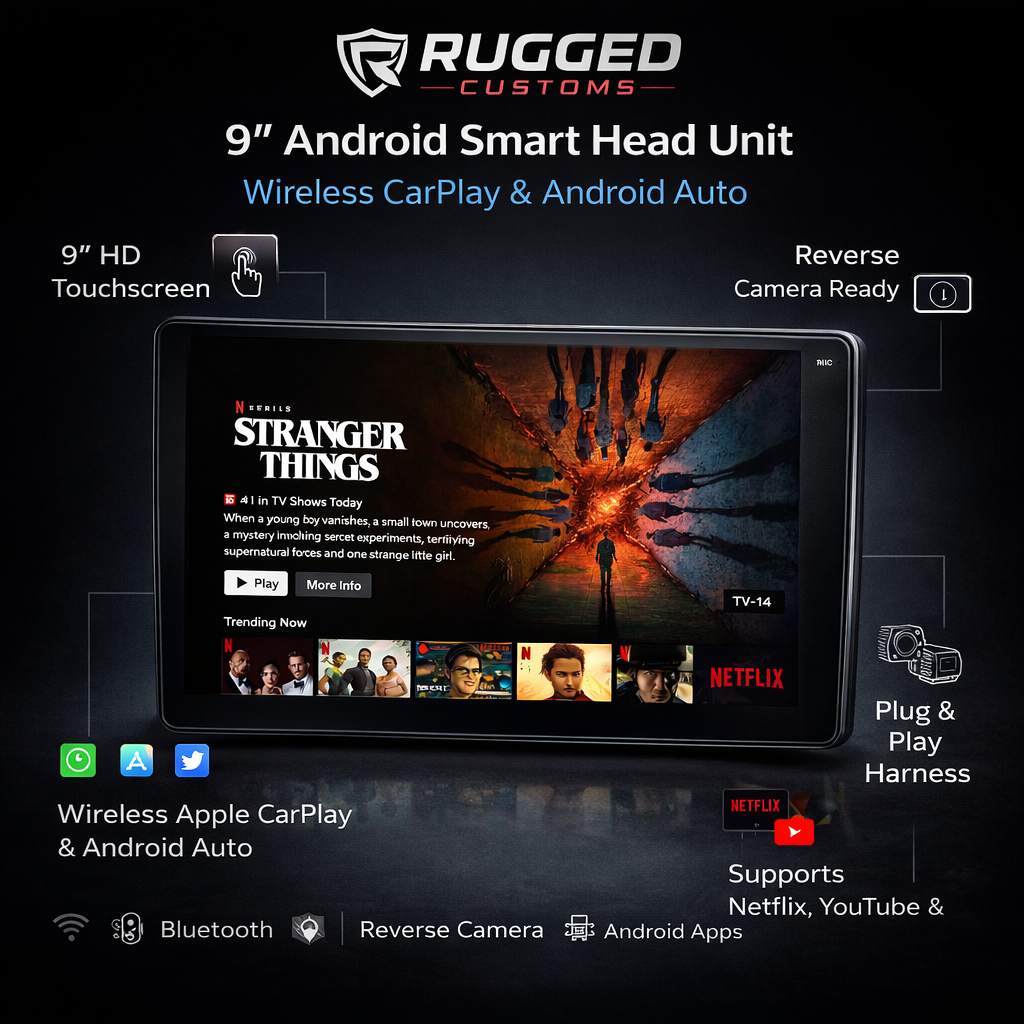

9” Plug-and-Play Head Unit for Toyota LandCruiser 200 Series
Fits LandCruiser 200 Series · GX, GXL and Altitude, pick your year below
Got a factory camera? Keeping it needs a retention harness we don’t supply. Our camera is the simpler path.
Not sure it fits? Message us a photo of your dash and we’ll confirm before you pay.
For LandCruiser 200 Series, 2007 to 2022
The screen your LandCruiser 200 should have come with.
Engine’s sorted. Suspension’s done. Then you climb in and stare at the factory radio.
- Hands-free calls
- Bluetooth
- Spotify
- Hema and Newtracs
Four questions, answered
1. Does it fit?
Yes. GX, GXL and Altitude, 2007 to 2022.
- GX
- GXL
- Altitude
- Not for the VX or Sahara
- Rear screens, JBL, or buying it for someone? Message us a photo first
2. Can I fit it myself?
Yes. About two hours, and nothing gets cut.
- Loom and fascia made for your LandCruiser 200
- Adding our camera? Allow two more for the reverse-light wiring
3. What about my factory gear?
It all plugs straight back in.
- Speakers, climate panel and hazard switch stay
- Steering wheel buttons too, where fitted
- Two new USB ports replace the old socket
- Amp and sub outputs ready if you upgrade later
4. Which edition?
Essentials for daily driving. Elite for touring.
| EssentialsMost popular | Elite | |
|---|---|---|
| Internet for apps | Phone hotspot | Hotspot or own 4G SIM |
| Memory | 3GB | 6GB |
| Storage | 32GB | 128GB |
- Same screen, CarPlay, GPS and fit on both
- No SIM needed for CarPlay; it runs off your phone
- Elite’s SIM is optional, not included, and needs 4G coverage
In the box

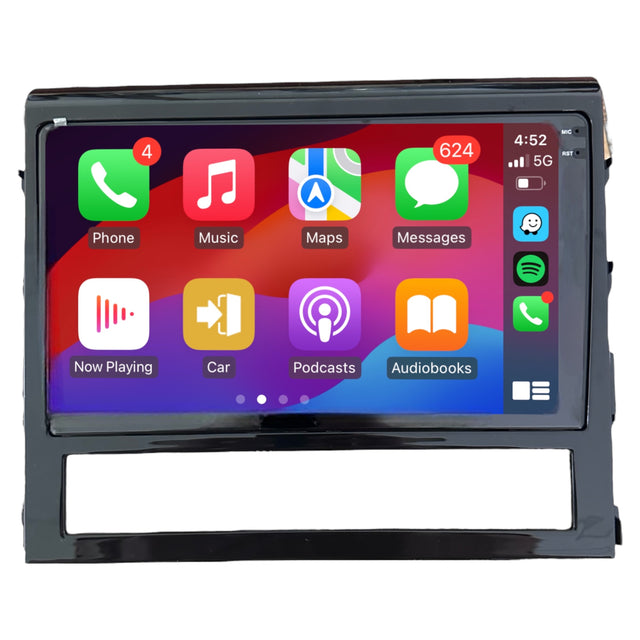

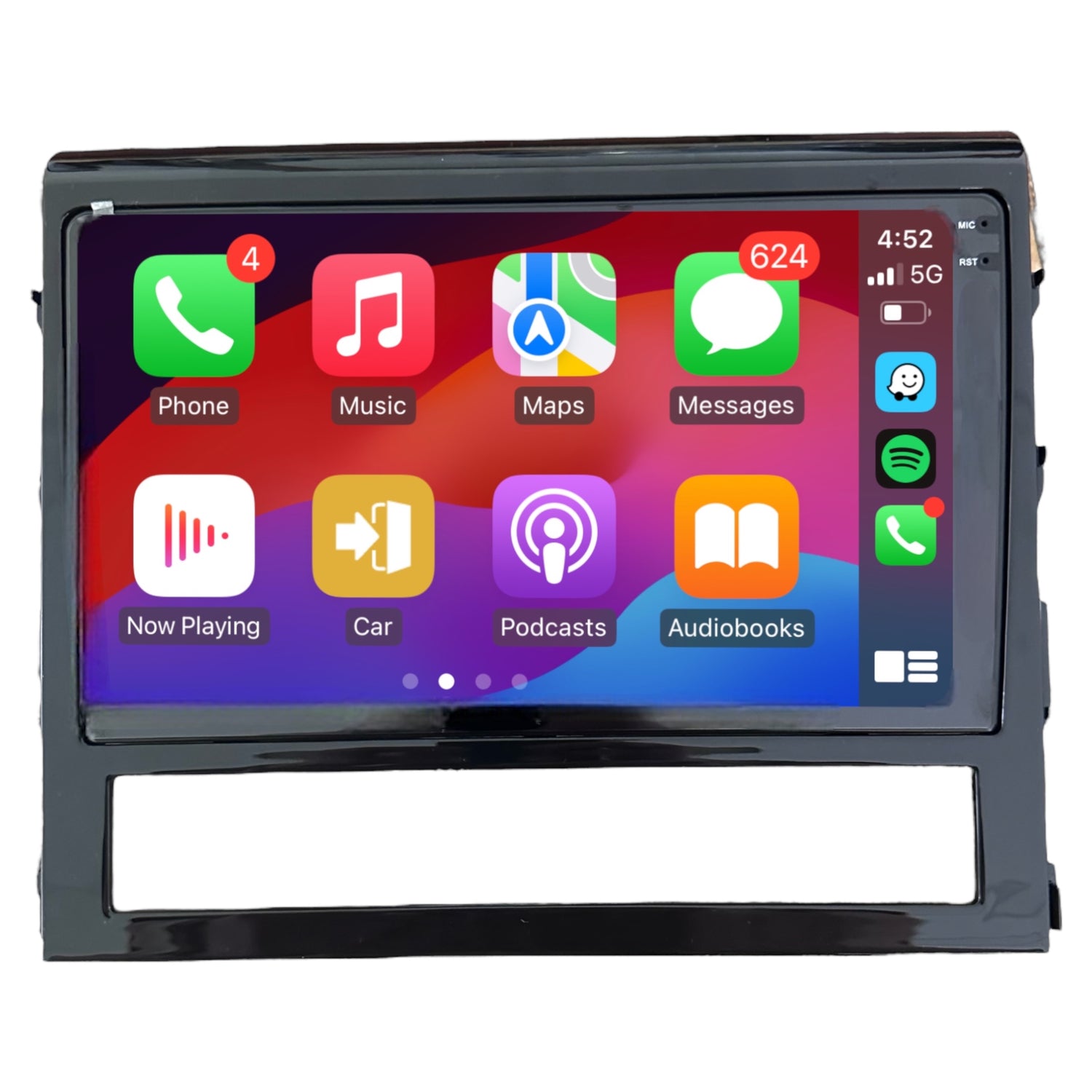

- 9-inch screen
- Fascia matched to your dash
- Plug-in loom
- GPS antenna
- External mic
- 2 USB leads
- Camera lead
Elite adds the 4G antenna and SIM tray.
Add the reverse camera and engine reader
- 1080P camera comes on in reverse
- Engine reader shows supported live data and fault codes
Most orders include it. Keeping your factory camera? Message us before you order and we’ll sort the retention lead.
Fit it in about two hours
- 1Factory radio outDisconnect the battery first (airbags). 2007–2015: side trims, vent surrounds, upper fascia and climate panel off, then four 10mm bolts. 2016 on: kick panels and covers off, then the screen bolts (two hide behind it)
- 2Plug the loom inEvery factory plug has a match on the loom
- 3Move your switchesHazard switch and climate panel move to the new unit. Fit the climate panel first
- 4Test, then fitCheck sound, phone and GPS before you clip it in
You’ll need: trim tools, Phillips screwdriver, 10mm socket, nut driver, tape and cable ties.
- Full install guide
- Stuck mid-job? Message us a photo and we’ll talk you through it
- Rather not? An auto electrician or car audio shop can fit it. Send them the guide
Why buy from us?
- Loom and fascia made for your LandCruiser 200
- In stock in NSW, ships the same business day
- 12-month warranty, plus your consumer law rights
- An Australian business that answers when you message
- 5,500+ customers, 4.9 store rating
Questions
Delivery?
Free AusPost shipping from NSW. Recent orders to NSW and QLD have taken 3 to 6 business days; allow a little longer elsewhere and longest for WA and the NT.
Will it drain my battery?
It goes to sleep when the key is off. If the vehicle sits for weeks, set the shortest sleep time in settings and unplug the engine reader.
Will it throw dash warning lights?
The loom includes a box that talks to your vehicle’s wiring (the CAN interface), so warning lights aren’t expected. If one shows after fitting, message us a photo and we’ll sort it.
Will it void my new-car warranty?
Generally no. A maker can’t refuse a warranty claim just because an accessory is fitted, only for a fault the accessory caused. Nothing gets cut, so the factory radio can go back in.
Maps with no signal?
The GPS works without phone signal. Download your maps before you go: Google Maps offline areas are free, and Hema (paid) is built for the bush.
Antenna, USB and radio?
Your factory antenna connects to the loom, with an adapter where your vehicle needs one. Two new USB leads replace the factory socket and run wherever suits you. FM is built in. There’s no AM or DAB+ tuner, but those stations stream through free apps like ABC listen, using data.
Screen and controls?
The IPS screen reads clearly from any angle; polarised sunglasses can make it look darker, which is normal for car screens. No knob. Volume is on the screen, and on your steering wheel buttons where fitted. It starts up quickly and reconnects your phone on its own.
Specifications?
Returns?
Faulty: covered by the warranty and we pay return freight. Change of mind: unused and unopened, within 30 days of delivery, for 30-Day Store Credit. Full policy.
12-month warranty · 30-Day Store Credit · Free shipping from NSW
